Skamol Refractory Panels

Skamol Refractory Panels are used as a replacement refractory panels for your fireplace. Skamol Refractory Panels are an attractive, factory-built panel replacement option that is easy to work with and features an appealing three dimensional appearance. Using only ordinary wood working tools, Skamol Refractory panels are extremely easy to fit, and install!

Benefits:

• A Multitude of Design Possibilities
• High Temperature Resistance
• Low Heat Accumulation in Lining Materials
• Good Thermal Shock Resistance
• High Mechanical Strength
• Good Insulation Capacity Provides Better Combustion & Cleaner Waste Gas
• No Ceramic Fibers
• Non-Dusting Surfaces, Non-Irritant & Odorless

Skamol Refractory Panels shipped by freight line, freight charges apply. A minimum quantity of five panels are required when purchasing - for less than five, please call for pricing.


Please see Technical Specifications page for important information regarding the installation of Skamol Refractory Panels.

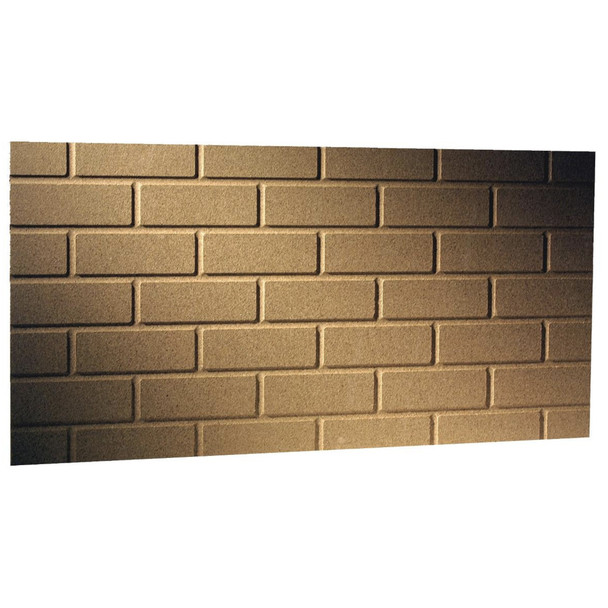

Skamol Refractory Panels, Brick & Herringbone Pattern Dimensions:

1" x 24" x 39 5/8"

IMPORTANT NOTES:

• Before installing these Skamol Refractory Panels, inspect the firebox to ensure that all internal mounting surfaces are flat. Skamol Refractory Panels cannot be installed when the mounting surfaces are concave, convex or have any type of internal standoffs, which can cause future stress cracks.

• Skamol Refractory Panels will expand and contract as temperatures inside the fireplace increase or decrease. It is important to incorporate a necessary allotment when installing new panels. The installation must take place in a way that allows Skamol Refractory Panels to freely expand and contract. As an example, at 1600° F Skamol Refractory Panels will expand 1 - 1.2%.

• Do not use screws or adhesive to fasten Skamol Refractory Panels in place, use ‘Z’ clips, located at top of the panel.
